Powermatic 16-Inch Parallelogram Jointer, Helical, 7.5 HP, 230/460V 3Ph (PJ1696)

Product Description We see a future built on great brands, great products, and great people. In every facet of our business we leverage the strengths of our global infrastructure to maximize the benefits of all three. From the Manufacturer This 16-Inch jointer offers big capacity and performance in a machine that is loaded with features. Large center-mounted fence assembly adjusts easily on a rack and pinion system with ram lock. Preset stops on the fence body allow for fast angle set-up at 45-degree in and out, and a positive stop for perfect 90-degree angles. The parallelogram design keeps the table in close proximity to the cutterhead for improved finish and allows for a fast depth of cut adjustment. This design also ensures the tables remain perfectly parallel even after years of tough duty. The specially designed solid steel helical cutterhead consists of six rows of precision ground staggered inserts. This system makes fast work of knife changing and never needs adjustment. The heavy-duty 7-1/2 HP motor delivers all the power you need for even the biggest jobs.

• Helical cutterhead features 58 two-sided knife inserts that reduce noise, eliminate adjustments, and speed knife changes

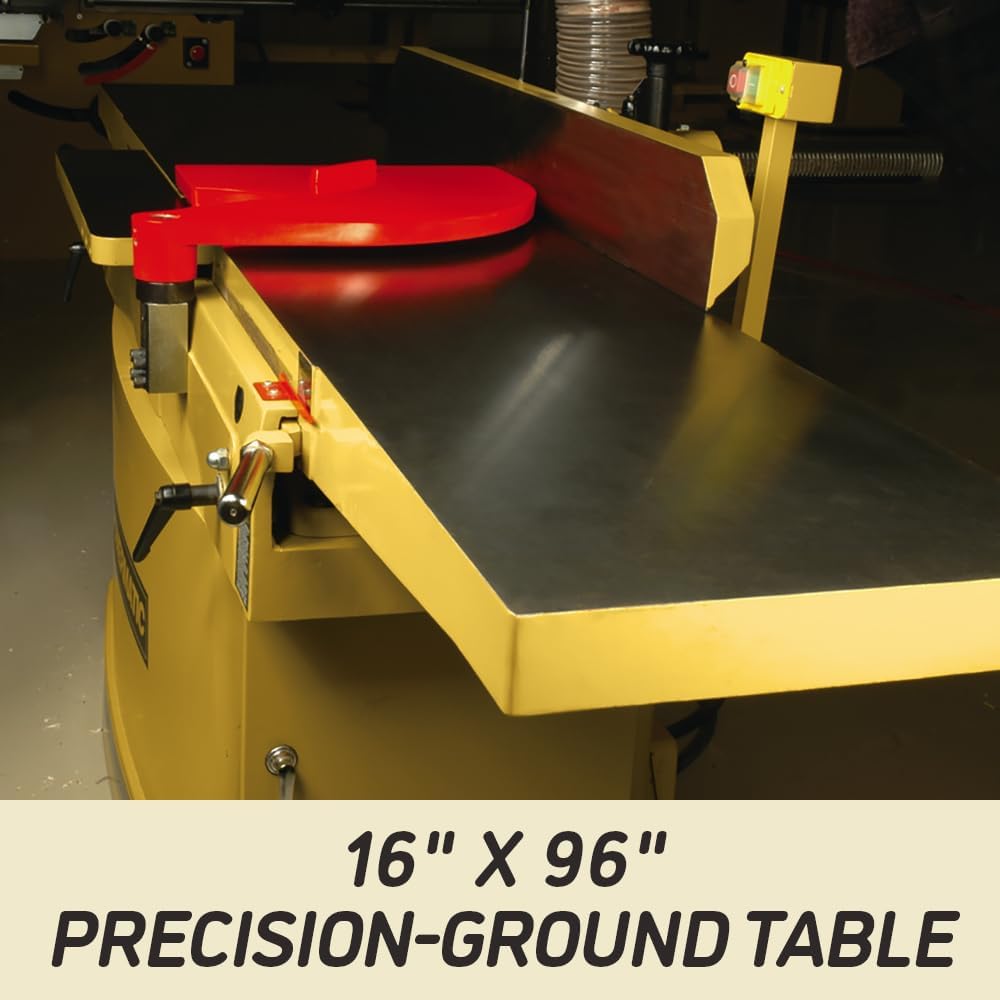

• Large 16" x 96" precision-ground cast iron table for maximum support and fine finish
• Cast iron fence bevel controls feature positive stops at 45° and 90°
• Parallelogram construction maintains close table-to-cutterhead proximity and ensures table parallelism
• Rack and pinion adjustable cast iron fence system for smoother fence positioning and sturdy work support

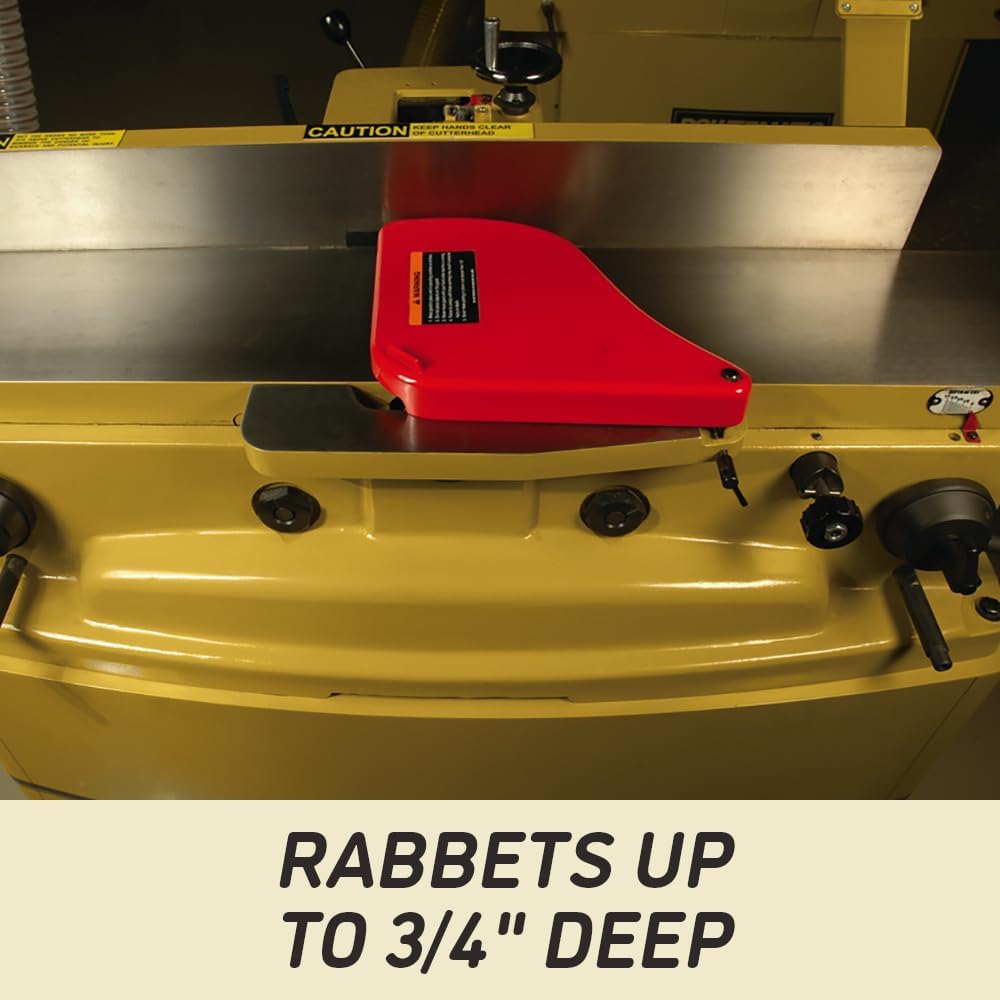

• Max. cutting depth for non-rabbeting cuts is 1/8"; max. cutting depth for rabbeting cuts is 3/4"
